GSM Gate Opener for Gates, Barriers and Doors
Hi-Tech Security Systems supplies reliable GSM gate opener products for electric gates, automatic barriers, garage doors, shutters, door locks, private roads and controlled access points. A GSM gate opener allows authorised users to open or close access by calling the SIM card number in the unit.
The GSM gate opener is a practical access control product where phone-based entry is preferred over proximity cards, fobs or keypad codes. Because users call the unit and the call is rejected, each activation can be free of call charge for the user and the SIM card.
The RTU5024 GSM gate opener can support up to 200 authorised users, or it can be set so anyone who knows the SIM card number can activate the gate, barrier, door or lock. Authorised numbers can be managed by SMS command from a mobile phone.
The GSM gate opener works with many mobile network SIM cards and can be called from anywhere, making it a useful product for homes, farms, depots, commercial yards, private car parks and managed vehicle entrances.
GSM Gate Opener
Phone-based gate, barrier, garage door and lock control using authorised mobile numbers.
Need a GSM gate opener supplied? Contact Hi-Tech Security Systems for advice, prices and product support. Contact Us Now
Remote Gate Opening by Mobile Phone
A GSM gate opener gives authorised users a simple way to open or close a gate, barrier, garage door, shutter or lock by making a phone call. The unit recognises the caller ID, rejects the call and then activates the relay output.
Users do not need to carry a separate transmitter, fob or access card. If the user has an authorised mobile number, they can call the GSM gate opener to activate the connected access equipment.
Common GSM Gate Opener Applications
- GSM gate opener for electric swing gates and sliding gates
- GSM gate opener for automatic barriers and car park entrances
- Remote access control for garage doors, shutters and locks
- Mobile phone access for farms, yards, depots and private roads
- Access control for residential, commercial and industrial entrances
- Phone-based entry for staff, residents, contractors and regular users
GSM Gate Opener Options
We can help you choose a GSM gate opener based on your entrance type, number of users, SIM network, relay requirements and whether you want access restricted to authorised numbers or open to anyone who knows the SIM card number.

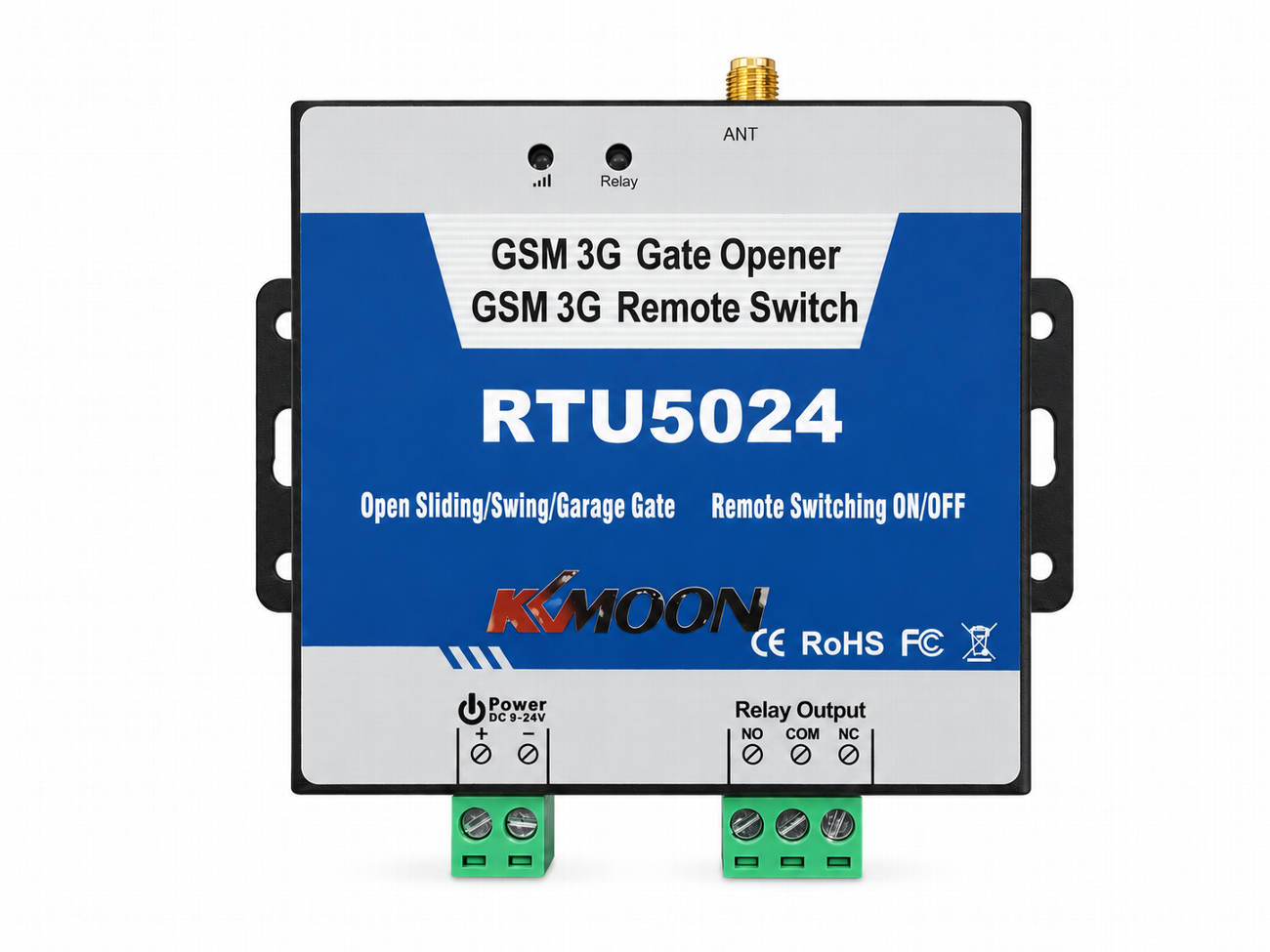

GSM Gate Opener Technical Specifications
| Specification | Detail |
|---|---|
| Model | RTU5024 |
| User capacity | Up to 200 authorised users, or open access for anyone with the SIM card number |
| Functions | Swing gate, sliding gate, garage door and lock control |
| GSM frequency | 850 / 900 / 1800 / 1900MHz |
| Output relay | NC / NO dry contact, 3A / 240V AC |
| Power input | DC 12V |
| Current draw | Maximum 50mA, standby 15mA |
| SIM card | Supports 3V SIM card |
| Antenna | 50 ohm SMA antenna interface |
| Temperature range | -20°C to +60°C |
| Humidity range | Relative humidity up to 90% |
GSM Gate Opener Access Control Options
The GSM gate opener can be set for controlled access using an authorised user list, or for wider access where anyone with the SIM card number can activate the unit. SMS commands are used to set authorised numbers and manage access control settings.
Why Choose a GSM Gate Opener?
A GSM gate opener is useful where users need convenient access without a transmitter, key, fob or card. It is a cost-effective access control option for regular users because the activation call can be rejected before chargeable connection.
Key Benefits of GSM Gate Openers
- Open or close gates, barriers, garage doors, shutters and locks by phone
- Supports up to 200 authorised users
- Can work with many mobile network SIM cards
- No separate fob, transmitter or access card required
- NC and NO dry contact output for flexible access control use
- Suitable for residential, commercial, agricultural and industrial entrances
Why Use Hi-Tech Security Systems?
- Over 30 years of access control experience
- Product supply support
- Advice for gates, barriers and GSM access control
- UK wide product supply
- Practical support from security specialists
Product Highlights
- RTU5024 GSM gate opener
- Up to 200 authorised users
- Can be set for authorised users or open access by SIM number
- DC 12V power input
- NC / NO dry contact output
- Quad-band GSM frequency support
- SMS command user management
- Suitable for gates, barriers, garage doors, shutters and locks
Compatible Access Control Equipment
GSM gate openers can often be used with electric gates, automatic barriers, garage doors, shutters, locks, access controllers, keypads, RFID readers, vehicle loop detectors, remote controls and push buttons.
Hi-Tech Security Systems can advise on suitable GSM gate opener and accessory options for your entrance and access control requirements.
Popular Uses
GSM gate openers are commonly used for electric gates, automatic barriers, garage doors, shutters, private roads, farms, commercial yards and managed vehicle entrances.
They are a strong option when regular users need phone-based access control without carrying a separate transmitter or access card.
GSM Gate Opener Features
- Mobile phone based access control
- Caller ID recognition for authorised users
- SMS command setup and user management
- Free-call style activation when the call is rejected
- Flexible user mode for private or shared access
GSM Gate Opener FAQs
What is a GSM gate opener?
A GSM gate opener is an access control product that uses a mobile phone SIM card to activate a gate, barrier, garage door, shutter or lock when an authorised user calls the unit.
How many users can the GSM gate opener support?
The RTU5024 GSM gate opener can support up to 200 authorised users, or it can be set so anyone with the SIM card number can activate the unit.
Does the user pay for each activation?
The GSM gate opener rejects the call before connection, so each activation can be free of call charge for the user and the SIM card.
What can a GSM gate opener control?
It can be used for swing gates, sliding gates, automatic barriers, garage doors, shutters, doors and locks, depending on the connected access control equipment.
Suitable For
- Electric gates
- Automatic barriers
- Garage doors
- Shutters
- Door locks
- Private roads
- Farms, yards and commercial entrances
